Getting Started with Visual UI Testing for Android Apps with Applitools and Bitrise

Advanced Topics — Published September 22, 2021

A hands-on guide for getting started with visual UI testing for mobile apps with Applitools and Bitrise easily.

Mobile apps play a critical role nowadays in our life, especially during the pandemic period, like e-commerce, groceries, medical, or banking apps. As we know there are different mobile apps, technologies, SDKs, and platforms that make mobile testing have a lot of challenges and which need special technical skills from the testing team to tackle.

And because most of the mobile companies aim to release their apps on a weekly or bi-weekly release cadence based on the team decision to deploy new features to the customer before their competitors, they are using different techniques. One of them is test automation.

Based on that, in this article, I’ll walk you through the most important aspects of automating the Visual UI testing for mobile apps and running it via CI/CD pipelines using Applitools and Bitrise.

What’s Visual Testing?

Visual Testing is a testing activity that helps us to verify that the GUI (Graphical User Interface) appears correctly and as expected to customers, by checking that each element on a mobile app appears in the right size and position on different devices and OS versions.

Why should we automate Visual UI Testing?

Mobile companies nowadays are applying Mobile DevOps and implementing CI/CD (Continuous Integration and Continuous Delivery/Deployment) pipelines to deploy their mobile apps consistently and frequently.

Mobile DevOps Lifecycle
Android CI/CD Pipeline

One of the vital parts of this process is test automation, to make sure that app functionalities are working as expected and test that there are no blockers or critical issues in the early stages (Fail Fast) by running these tests on every pull request or as a nightly build. And if we add Visual UI testing with this pipeline we will make sure that there are no issues in the GUI and all the features are displayed correctly.

In this tutorial, I will add the Visual UI Testing to my Android UI tests with Appium and then run my tests on Bitrise as CI/CD pipeline, covering the following steps:

  1. Implement and run test and locally with Applitools Eyes SDK
  2. Push the code to the GitHub repository
  3. Create Bitrise account and add the project
  4. Add the Applitools Environment Variables

Let’s get started!

To get started with Appium for Android applications, you should prepare your local machine with the following requirements:

  • macOS High Sierra or Mojave or Windows 10
  • NodeJS and NPM
  • Java +8
  • Android Studio includes Android SDK +16 (Android Emulator and command-line tools)
  • Appium Desktop
  • Appium
  • Appium Doctor
  • Maven or Gradle for your automation project

More information about installing Appium can be found in the free Appium Course on Test Automation University or in this blog post.

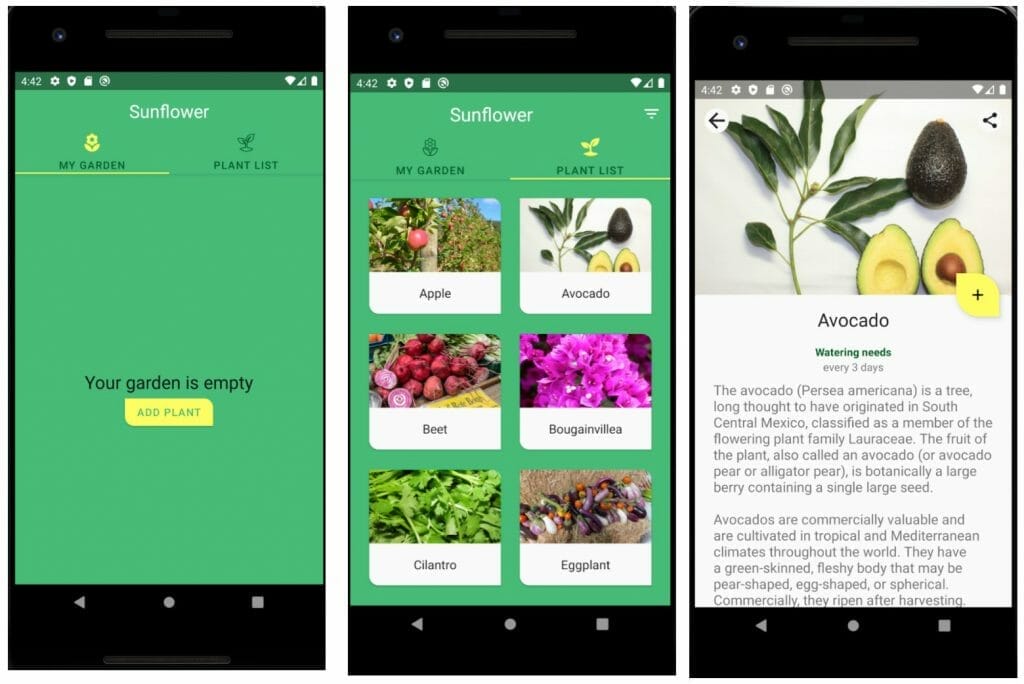

If you don’t have an Android application, you can fork the Sunflower app from GitHub. Sunflower app is a gardening app illustrating Android development best practices with Android Jetpack.

Sunflower Android App

With Appium, you can test automation scripts or projects that are stand-alone. I created a Maven project (you can create a Gradle one if you’d like) with the following structure:

  1. POM.xml: I added the project dependencies such as testNG, Appium, Eyes Appium Java and created a Maven profile to run the tests from the command line with the maven surefire plugin.
  1. Android_testng.xml: I added my testcase to run it with the maven command line using the maven command (mvn clean test -Pandroid)
  1. FirstAndroidTest.java: it’s the test class where I added my test case and Appium desired capabilities with the following scenario:
  • Open App
  • Click on Plant List
  • Click on My Garden
  • Click on Add Plant button
  • Click on “Avocado”
  • Click Back
  • Click on My Garden and assert that the plant name is exist

The full project can be found on GitHub.

And now we can run the test using the following command:

> mvn clean test -Pandroid

And the results will be like the following image:

Run Appium Tests Locally



Now it’s time to add the Visual UI validation using Applitools Eyes SDK for Appium

Applitools Eyes is powered by Visual AI, the only AI-powered computer vision that replicates the human eyes and brain to quickly spot functional and visual regressions.

If you don’t have an account you can create a free account from here.

  1. In the POM.xml file add the following dependency
  1. In the FirstAndroidTest class, initialize the eyes SDK with the following command

Eyes eyes = new Eyes();

  1. In the setUp() void, you can set the private Applitools API key (you can find it in your account) and disable take the full screenshot with the following code:

eyes.setApiKey("YOUR_API_KEY");

eyes.setForceFullPageScreenshot(false);

  1. In the add_plant_test() void, start the test with the following line:

 eyes.open(driver, "Sunflower", "Add My Plant");

  1. After we open the app, we will add the following line to check that the Plant List screen is displayed correctly:

eyes.checkWindow("Plant list",false);

  1. Then after we clicked on My Garden, we can add this line:

eyes.checkWindow("My Empty Garden",false);

  1. After we add the plant in the Garden “Avocado” we will add this line:

eyes.checkWindow("Avocado",false);

  1. At the end of the test, we will add this line to finish the test:

eyes.close();

  1. In the tearDown() void, we will add this line to abort the test if not closed:

eyes.abortIfNotClosed();

10. Now we can run our test again with the same Maven command and check the results in the Applitools Test manager with the steps view.

Applitools Test Manager

Or the Batch Summary View:

Batch Summary View

11. Try to run the test again and check if the results are the same or if there is an issue.

In my case when I run the tests again the test failed because the Eyes detected differences between the base images or the first run/batch and the 2nd run.

Visual UI failed tests

And I checked the dashboard to check the results and the differences:

Failed Test Applitools Test Manager

And I found that I have a difference in the first image which was already highlighted. You can click on the image for more details or compare it with the base image to check the difference.

Plant List Difference

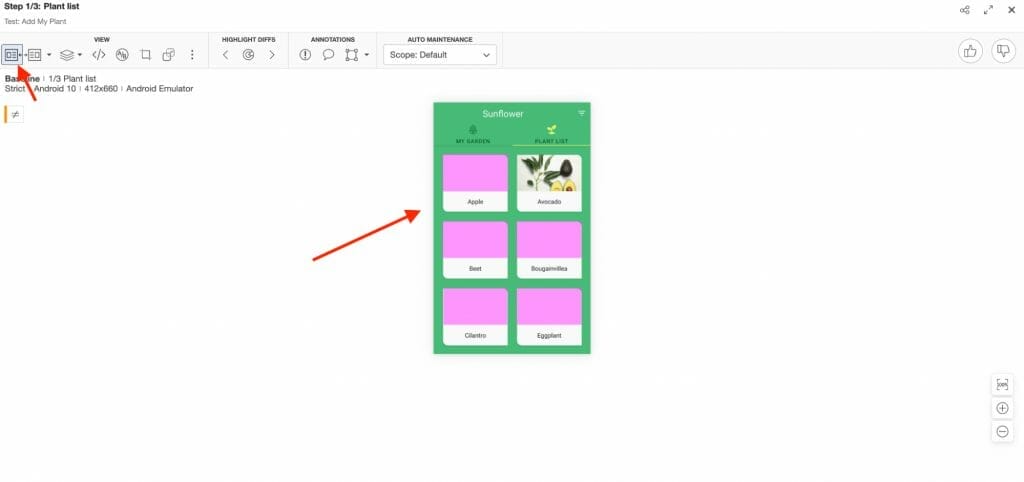

Showing our base image

Because in my case sometimes the images loaded slowly, there was a difference between the two images.

And also you can check the Batch Summary View for more details.

The batch summary of failed tests

TIP: If you need to run on different mobile devices and OS versions in parallel, you can use Applitools Ultrafast Test Cloud. More info on that can be found here.

Configuring your CI for the Eyes

After we successfully run our tests locally, it’s time to integrate our tests with our Android CI using Bitrise.

But first, we need to do a small change in the application path, Applitools API Key, and the Batch ID. Locally, we’re using the absolute path of the app and hardcoded values, but with Bitrise or our CI server, it should be as an environment variables with the following steps:

  1. I will set up the values of the environment variables APPLITOOLS_API_KEY and APPLITOOLS_BATCH_ID to provide the API key and batch ID respectively in the setUp() void using the following code:
  1. I will change the APK path to the Bitrise ENV Var because we will build the app in the CI server and then passing it to the Appium test using the following line

         caps.setCapability("app", System.getenv("BITRISE_APK_PATH"));

  1. Push the code to the GitHub Repository

Now it’s time to integrate our Android app and the automation project with Bitrise.

  1. First, you need to create a new Bitrise account (it’s free). You can use your email or any other account name you prefer.
  1. After logging in, you will have an empty dashboard where you can start adding your projects.
  1. Click on the Add your first app button to add the Sunflower Android app first.
Adding a new app on Bitrise
  1. Select your account and in the SET THE PRIVACY OF THE APP section select Private or Public, then click Next.
Selecting the privacy of our account
  1. Give Bitrise access rights to your source code provider and choose the repository.
  1.  Now you need to set up the repository access: click on auto-add SSH key or add your SSH key.
Add SSH key
  1. Choose Branch name, for example, master/main, and click Next.
Selecting a branch name
  1.  After this, Bitrise will run a validation with your repository and configuration.
Bitrise scans the project

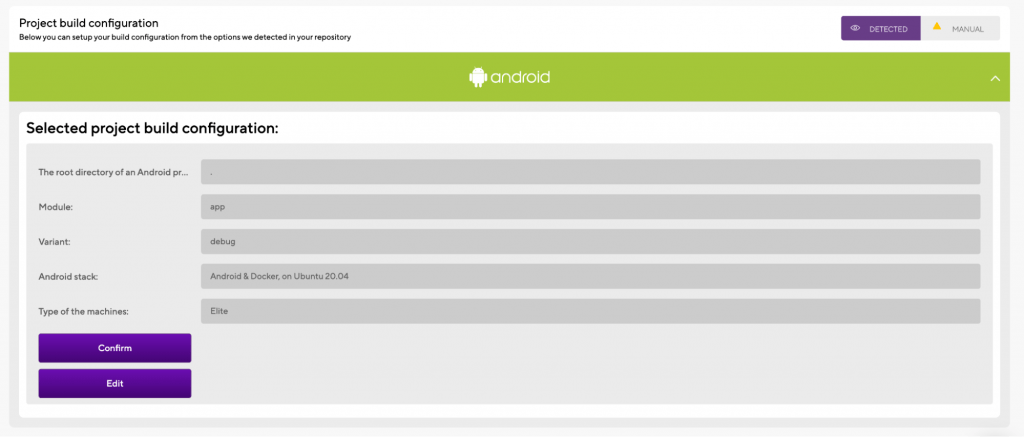

  1. After validating, the project build configuration will display successfully (for example, Android App).
Validating the Android Project
  1. Click on the Confirm button after reviewing the Workflow stack. You can add an app icon as well.
Adding an icon to your project

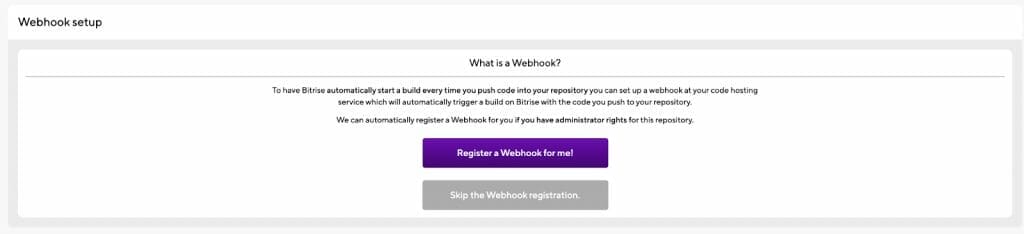

14. The final step is the Webhook setup. We just need to click on Register a Webhook for me! button and you will trigger your first Android build for your project

Register a Webhook
Kick off the project

15. You will be redirected to the build log where you can check the Steps and the build status.

Trigger Bitrise Build

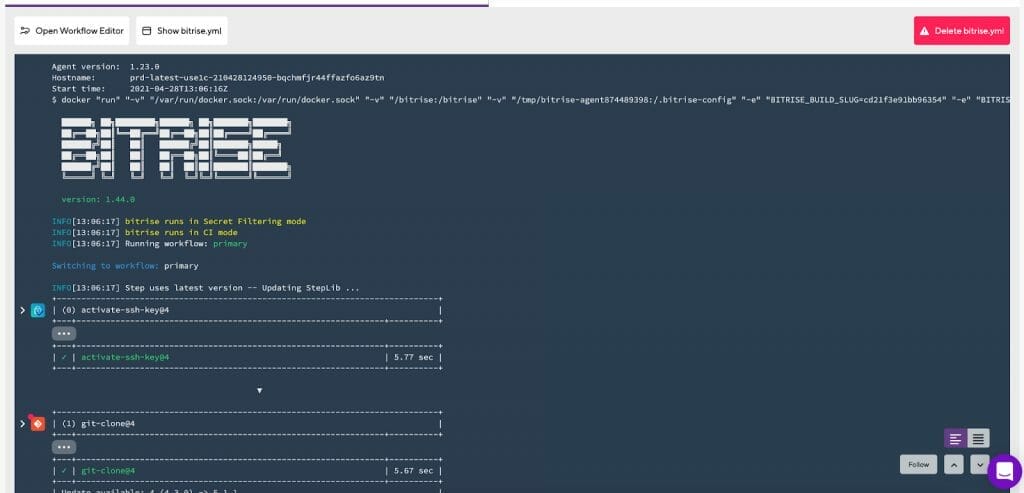

Bitrise build starter screen
install missing Android SDK

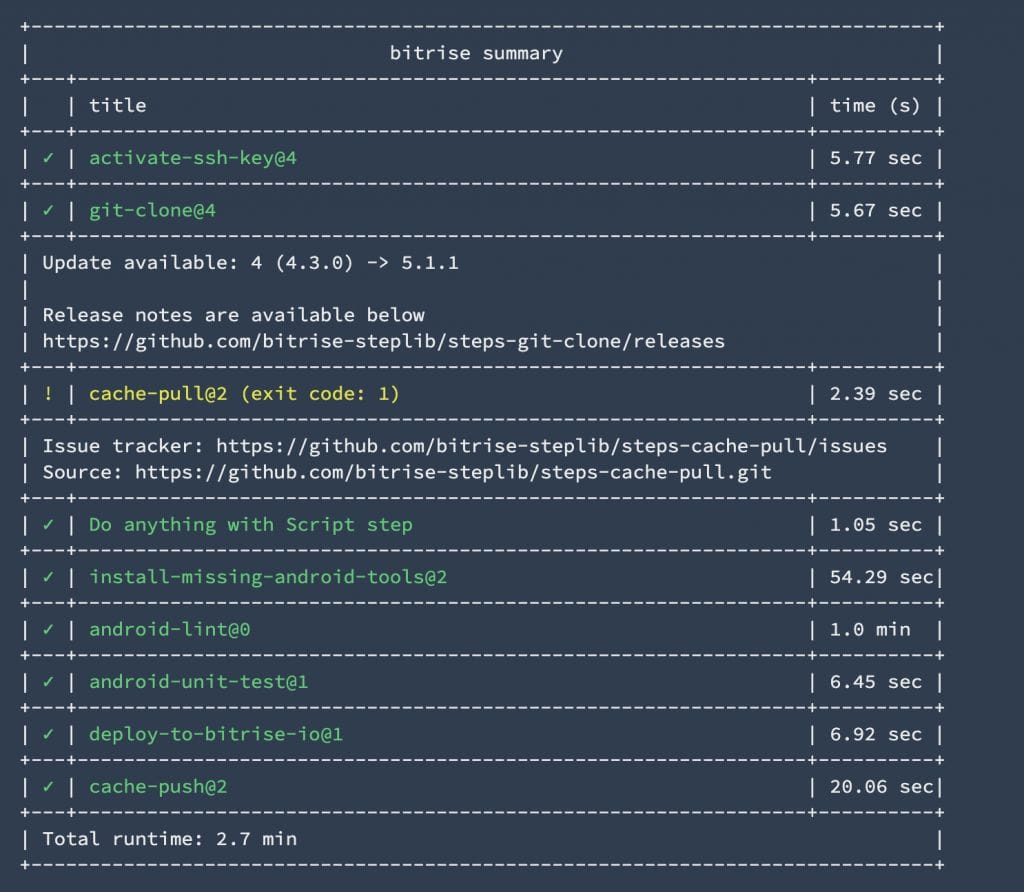

16.  In the end, you will find a summary of all the tasks you ran during the build and how much time they took, along with the Step names. You can download logs or check the apps and artifacts here.

final build results

17. Now let’s open the Workflow Editor to configure the CI Workflow with the new steps required for Appium and Applitools integration.

open the workflow editor

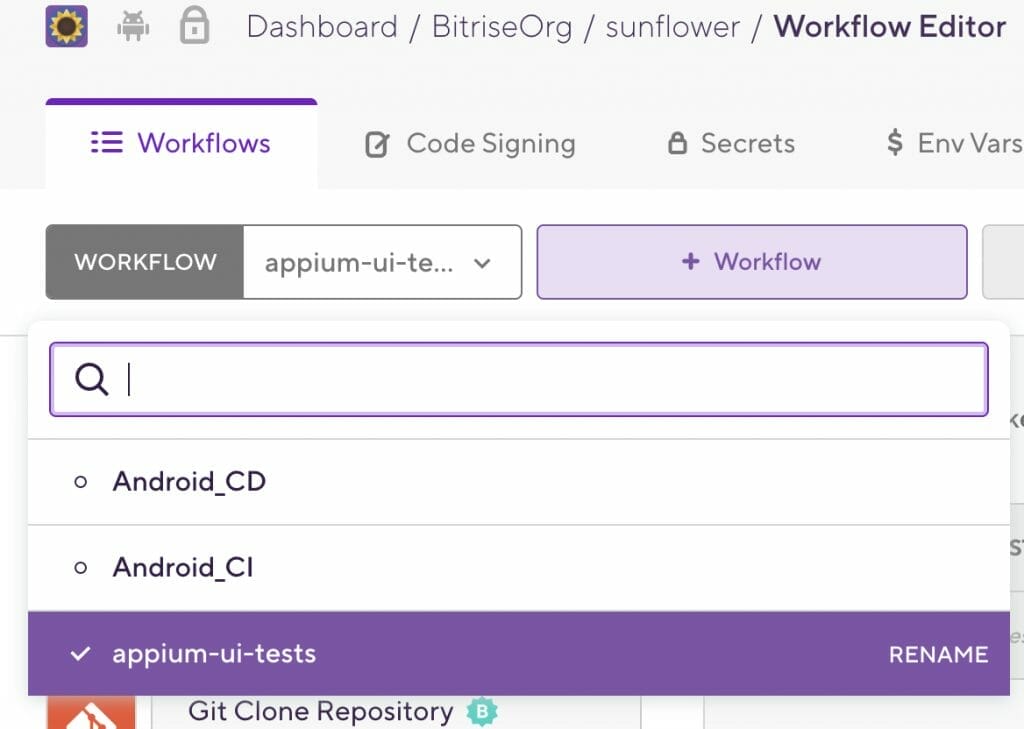

You can rename the workflow as you like, for example from primary to appium-ui-tests:

rename the workflow name

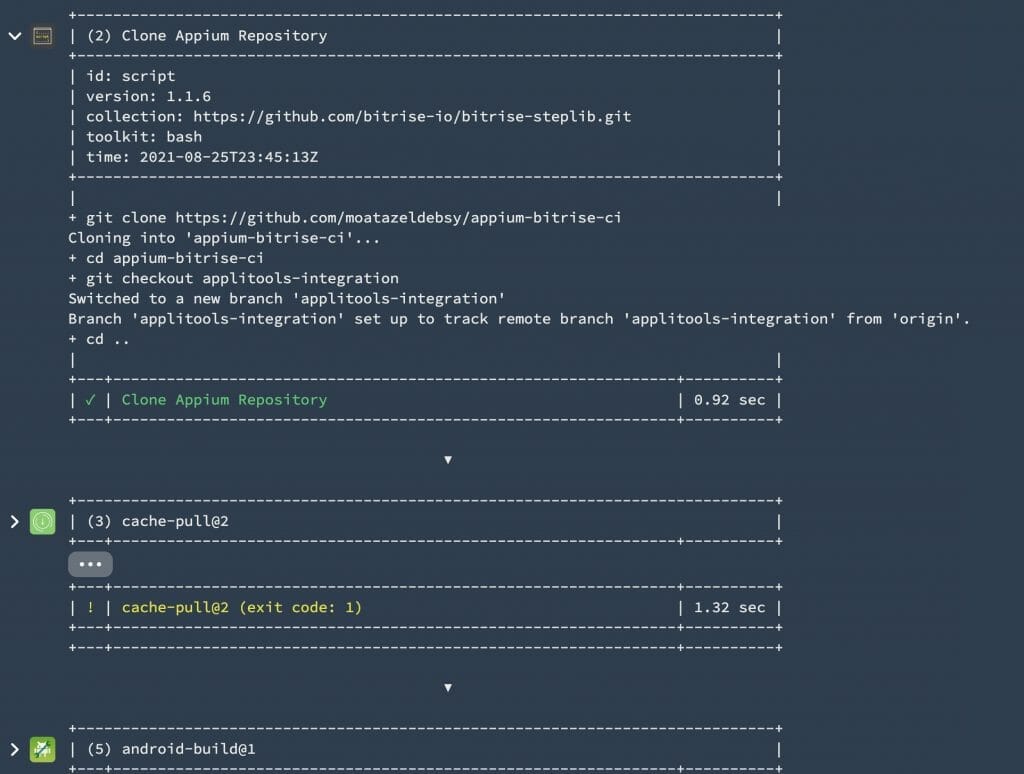

18. Add a Script step to clone the Appium repository by clicking on the + button and it will open the steps screen, then you can search about the script then select it.

clone Appium repository

19. As we know, we are using Appium Desktop as a server and inspector locally, but with CI servers we can’t use it, so we need to install and run Appium Server from the command line. Here I’ll add another Script step to install and run the Appium server in the background.

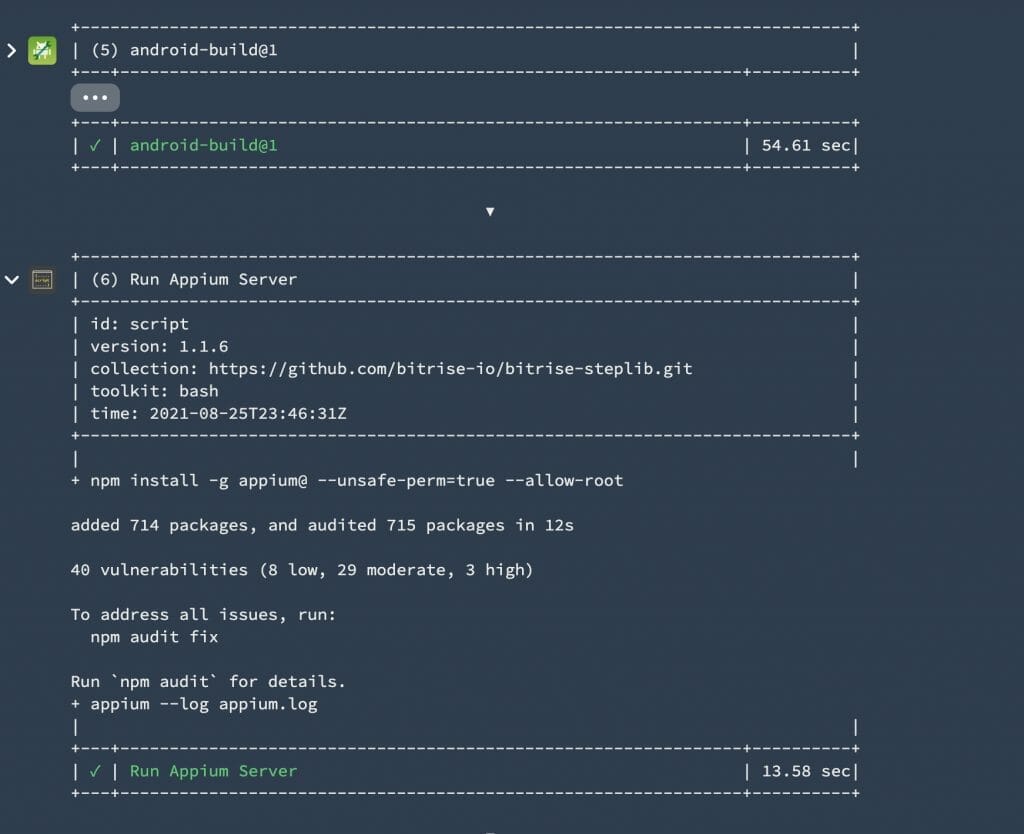

install and run Appium server

20. You will notice that I’m passing –log appium.log with the Appium command to export the server log as a .txt file for more debugging purposes if any tests failed.

21. Add the AVD Manager Step to create an Android Emulator to use with your tests. You can choose any API level. For example, you can change it to 28 but you need to change it in the Appium desired capabilities and commit the change to your GitHub repository as well.

AVD Manager step

22. Add the Wait for the Android emulator Step and wait for the emulator to be ready before running our tests on it.

wait for Emulator step

23. Add another Script Step to run the UI tests. You need to switch inside the automation project to be able to run the maven command.

run the ui tests

24. Add the Script Step to copy the Appium log file to the Deploy directory of Bitrise to be able to find it in the artifacts tab.

export Appium log to the artifacts folder

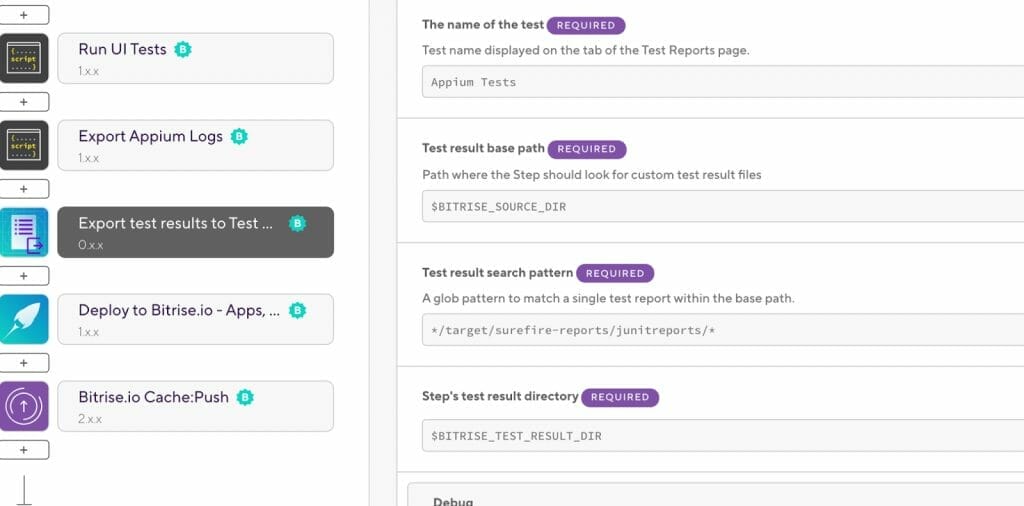

25. Add a Step to Export the test results to the Bitrise Test Report Add-on and specify the test results search pattern like this: (*/target/surefire-reports/junitreports/*)

export test results to Test Report add-on

26. Add the Applitools API Key and the Batch ID as environment variables, by click on the Secrets menu option and click add button then add your APPLITOOLS_API_KEY and APPLITOOLS_BATCH_ID like the following image:

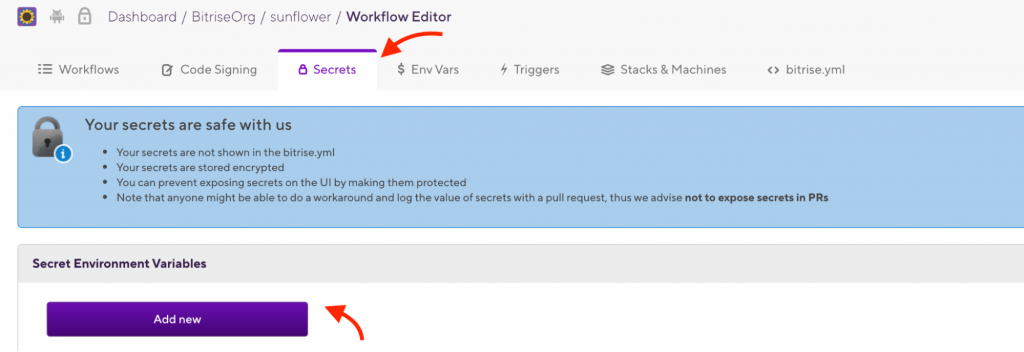

open the Secrets menu
add Applitools Env Vars

The final Workflow will look like the following:

The complete workflow (part 1)
The complete workflow (Part 2)

To run the Workflow, go to the application page and click on the Start/Schedule Build button and select the Workflow then click on the Start Build button.

start the Bitrise build
The clone step in the build
install and run Appium server
create an Emulator with AVD Manager step
wait for the Emulator step
run the UI tests using the Maven command
the final successful build status

To check the test results and the Appium log file you can click on the Test Report add-on, and for the appium log and the app.apk file, you can click on Apps & Artifacts tab.

The test report with the Test Report add-on
the app and the build artifacts

Finally, we successfully added the Visual UI testing for our Android app and we can run the tests on every pull request or as a nightly build to make sure that we don’t have something breaking our codebase and to keep our master branch always green.

I hope you found this article useful and thank you for reading it!
